Modular Chiller Rooms from Mercatus feature 80mm panel insulation, Stainless steel floor (not suitable for trolleys), aluminium shelving, lock and fan assisted cooling as standard. Chillers suitable for storage of fresh meat.
*External height 2.1m, internal height 1.95m.
Mercatus Modular Chiller Rooms are supplied as quick to assemble packs.
A site survey is available and recommended upon request for UK mainland.
INSTALLATION (Optional)
Subject to:
- Suitable single phase 13 amp fixed isolator to be provided by clients' electrical contractor
- Flat prepared floor
- Isolator to be within 1m of coldroom equipment
- Suitable ventilation if required
- Suitable clear access to site for delivery and installation
- Prices assume normal working day Monday to Friday 0830 to 1700 hours
- Rooms are not suitable for outdoor installation
- Any subsequent visits to finish coldroom installation due to site delays or non site / incorrect site survey will incur additional costs
Important: We recommend all units are hard wired into a power supply to stop them being accidentally unplugged.
Note: Images are for illustrative purpose only - product may vary.
| Specification | |
| Temperature Range | -2ºC to +8ºC (Suitable for fresh meat) |
| Power Supply | 13 amp |
| Notes | |
| Note 1 | Fully automatic operation & Fan assisted cooling |
| Note 2 | Lock |
| Note 3 | Digital controller and temperature display |
| Note 4 | Freestanding 4 tier aluminium shelving 370mm deep (all 415 shelving modules are 3 tier due to proximity to evaporator). Maximum load per shelving section: 400kg |
| Note 5 | Switchable interior light |
| Note 6 | Non slip stainless steel floor & Heated door frames |
| Note 7 | 80mm panel insulation, high pressure injected CFC free polyurethane with a density of 41Kg m³ |
| Note 8 | Panel fastening system with dual effect camlocks & Pressure equalising valve |
| Note 9 | Self closing doors with stay open feature for ease of loading & Ergonomic handle with safety opening system |
| Note 10 | Reversible and rounded door & 45° internal corners |
| Note 11 | Max Ambient: 30°C at 55% RH |
| General | |
| Finish | Exterior: White / Interior: White with Stainless Steel floor |

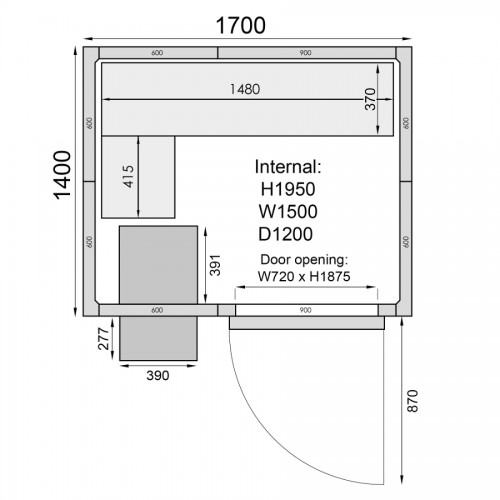

Mercatus ME1417C: Modular Chiller Room - 1700x1400mm - Special Offer Price
- Brand: Mercatus
- Product Code: Mercatus ME1417C
- Height (cm): 210
- Width (cm): 170
- Depth (cm): 140
-
£4,811.38
- Ex Tax: £4,009.49
Available Options (+ VAT)
