Modular Freezer Rooms from Mercatus feature 80mm panel insulation, Stainless steel floor (not suitable for trolleys), aluminium shelving, lock and fan assisted cooling as standard.
*External height 2.1m, internal height 1.95m.
Mercatus Modular Freezer Rooms are supplied as quick to assemble packs.
A site survey is available and recommended upon request for UK mainland.
INSTALLATION (Optional)
Subject to:
- Suitable single phase 13 amp fixed isolator to be provided by clients' electrical contractor
- Flat prepared floor
- Isolator to be within 1m of coldroom equipment
- Suitable ventilation if required
- Suitable clear access to site for delivery and installation
- Prices assume normal working day Monday to Friday 0830 to 1700 hours
- Rooms are not suitable for outdoor installation
- Any subsequent visits to finish coldroom installation due to site delays or non site / incorrect site survey will incur additional costs
Important: We recommend all units are hard wired into a power supply to stop them being accidentally unplugged.
Note: The image of the shelving unit is for illustrative purpose only - product may vary.
| Specification | |
| Temperature Range | -18ºC to -22ºC |
| Power Supply | 13 amp |
| Notes | |
| Note 1 | Fully automatic operation & Fan assisted cooling |
| Note 2 | Lock |
| Note 3 | Digital controller and temperature display |
| Note 4 | Freestanding 4 tier aluminium shelving 370mm deep (all 415 shelving modules are 3 tier due to proximity to evaporator). Maximum load per shelving section: 400kg |
| Note 5 | Switchable interior light |
| Note 6 | Non slip stainless steel floor & Heated door frames |
| Note 7 | 80mm panel insulation, high pressure injected CFC free polyurethane with a density of 41Kg m³ |
| Note 8 | Panel fastening system with dual effect camlocks & Pressure equalising valve |
| Note 9 | Self closing doors with stay open feature for ease of loading & Ergonomic handle with safety opening system |
| Note 10 | Reversible and rounded door & 45° internal corners |
| Note 11 | Max Ambient: 30°C at 55% RH |
| General | |
| Finish | Exterior: White / Interior: White with Stainless Steel floor |

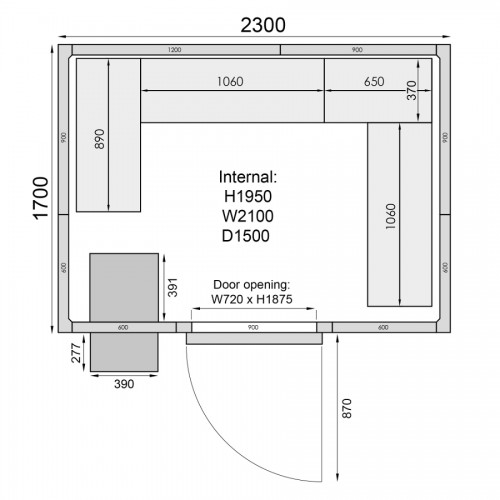

Mercatus ME1723F: Modular Freezer Room - 2300x1700mm
- Brand: Mercatus
- Product Code: Mercatus ME1723F
- Height (cm): 210
- Width (cm): 230
- Depth (cm): 170
-
£6,388.45
- Ex Tax: £5,323.71
Available Options (+ VAT)
